Description

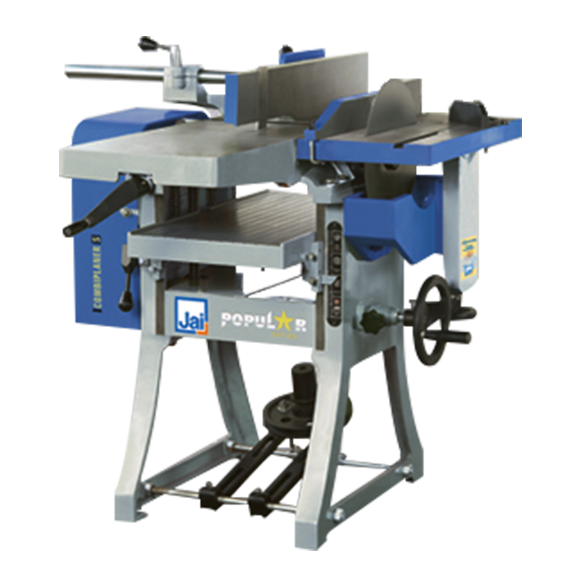

COMBI PLANER J 303L

Surfacing capacity: 330 mm / 13″
Max planing width: 330 mm / 13″
Thickness capacity: 177 mm / 7″
Length Of surface Table: 1550 mm / 61″
Rebating Capacity: 12.5 mm / ½”
Length Of Thickness Table: 660 mm / 26″
Min. Length of the workpiece for thickness: 254 mm / 10″
Feeding Speed (feet per minute): 24
Cutter block diameter: 95 mm / 3.75″
Cutter block speed: 4000 RPM
Standard cutter block: code no. 3B-W
Circular saw table size: 560 mm x 280 mm / 22″ x 11″
Up/Down movement of Cir. saw table: 75 mm / 3″
Max. circular saw diameter: 300 mm / 12″
Power required: HP / RPM 3 / 1440
Approx.wt.of machine: 350 kg.

Equipment & Features »

• Standard Fence
• Additional Saw Table
• Standard Wheel For Table Adjustment
• Manual Tilting For 45 Degree Of Fance
• Standard Switch For Over Load Safety
• Miter Gauge Facility
• Machine With Circular Saw Attachment

With Machine (Free) »

• Installation & Training
• 1 year servicing
• Planer Blade 1 set (03 pcs)
• Circular Saw Blade 01 Pc
