| GENERAL | |

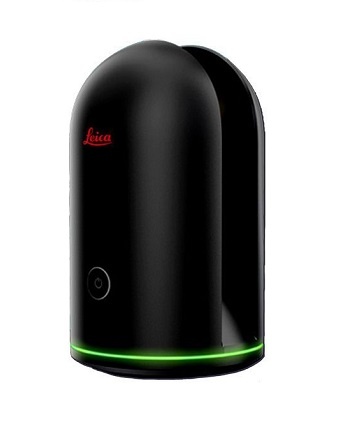

| Imaging scanner | 3D scanner with integrated spherical imaging system and thermography panorama sensor system |
| DESIGN & PHYSICAL | |
| Housing | Black anodized aluminium |
| Dimensions | Height: 165 mm / Diameter: 100 mm |
| Weight | 1kg |
| Transport cover | Hood with integrated floorstand |
| Mounting mechanism | Button-press quick release |
| OPERATION | |
| Stand-alone operation | One-button operation |
| Remote operation | iPad app, Apple iPad Pro® 12.9”/iOS 10 or later |
| Wireless communication | Integrated wireless LAN (802.11 b/g/n) |
| Internal memory | Storage for > 100 setups |
| Instrument orientation | Upright and upside down |
| POWER | |
| Battery type | Internal, rechargeable Li-Ion battery (Leica GEB212) |
| Capacity | Typically >40 setups |
| SCANNING | |
| Distance measurement system | High speed time of flight enhanced by Waveform Digitizing (WFD) technology |
| Laser class | 1 (in accordance with IEC 60825-1:2014) |
| Wavelength | 830 nm |
| Field of view | 360° (horizontal) / 300° (vertical) |
| Range* | min. 0.6 – up to 60 m |
| Point measurement rate | up to 360’000 pts / sec |
| Ranging accuracy* | 4mm @ 10m / 7mm @ 20m |
| Measurement modes | 3 user selectable resolution settings |
| IMAGING | |
| Camera System | 15 Mpixel 3-camera system, 150Mpx full dome capture, HDR, LED flash Calibrated spherical image, 360° x 300° |
| Thermal Camera | FLIR technology based longwave infrared camera, Thermal panoramic image, 360° x 70° |
| PERFORMANCE | |
| Measurement speed | < 3 min for complete fulldome scan, spherical image & thermal image |
| 3D point accuracy* | 6mm @ 10m / 8mm @ 20m |
| ENVIRONMENTAL | |
| Robustness | Designed for indoor and outdoor use |
| Operating temperature | +5 to +40° C |
| Dust/Humidity | Solid particle/liquid ingress protection IP54 (IEC 60529) |
