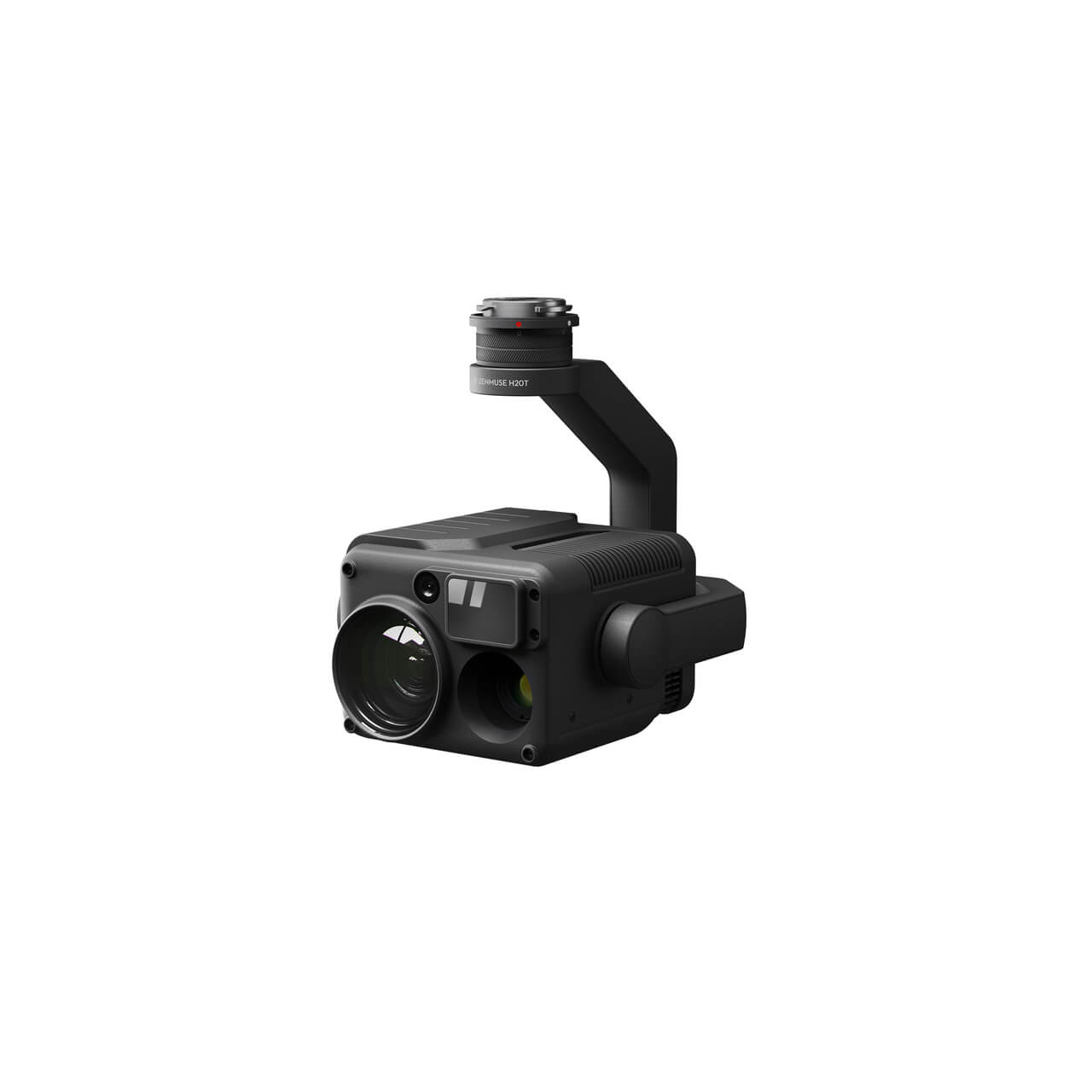

General

• Weight

• Zenmuse H20: 678±5 g
  Zenmuse H20T: 828±5 g

• Dimensions

• Zenmuse H20: 150×114×151 mm
  Zenmuse H20T: 167×135×161 mm

• Ingress Protection Rating

• IP44

• Operating Temperature

• -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)

• Storage Temperature

• -20° to 60° C

• Laser Safety

• Class 1M (IEC 60825-1:2014)

• Supported Aircraft

• Matrice 300 RTK

Gimbal

• Angular Vibration Range

• ±0.01°

• Mount

• Detachable

• Controllable Range

• Pitch: -120° to +30°
  Yaw: ±320°

• Mechanical Range

• Pitch: -132.5° to +42.5°
  Yaw: ±330°
  Roll: -90° to +60°

Zoom Camera

• Sensor

• 1/1.7″ CMOS, 20 MP

• Lens

• DFOV: 66.6°-4°
  Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
  Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
  Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)

• Focus Mode

• MF/AF-C/AF-S

• Exposure Mode

• Auto, Manual

• Exposure Compensation

• ±3.0 (1/3 increments)

• Metering Mode

• Spot metering, Center-weighted metering

• AE LOCK

• Supported

• Electronic Shutter Speed

• 1 ~ 1/8000 s

• ISO Range

• Video: 100 – 25600
  Photo: 100 – 25600

• Video Resolution

• 3840×2160@30fps, 1920×1080@30fps

• Video Format

• MP4

• Video subtitles

• Supported

• Photo Size

• 5184 × 3888

• Photo Format

• JPEG

Wide Camera

• Sensor

• 1/2.3″ CMOS, 12 MP

• Lens

• DFOV: 82.9°
  Focal length: 4.5 mm (equivalent: 24 mm)
  Aperture: f/2.8
  Focus: 1 m to ∞

• Exposure Mode

• Auto

• Exposure Compensation

• ±3.0 (1/3 increments)

• Metering Mode

• Spot metering, Center-weighted metering

• AE LOCK

• Supported

• Shutter Speed

• 1 ~ 1/8000

• ISO Range

• Video: 100 – 25600
  Photo: 100 – 25600

• Video Resolution

• 1920×1080@30fps

• Video Format

• MP4

• Video subtitles

• Supported

• Photo Size

• 4056 x 3040

• Photo Format

• JPEG

Thermal Camera (Zenmuse H20T)

• Sensor

• Uncooled VOx Microbolometer

• Lens

• DFOV: 40.6°
  Focal length: 13.5 mm (equivalent: 58 mm)
  Aperture: f/1.0
  Focus: 5 m to ∞

• Digital Zoom

• 1x, 2x, 4x, 8x

• Video Resolution

• 640×512 @ 30 Hz

• Video Format

• MP4

• Image Resolution

• 640×512

• Image Format

• R-JPEG (16 bit)

• Pixel Pitch

• 12 μm

• Spectral Band

• 8-14 μm

• Sensitivity (NETD)

• ≤50 mK @ f/1.0

• Temperature Measurement Method

• Spot Meter, Area Measurement

• Scene Range

• -40 °C to 150 °C (High Gain)
  -40 °C to 550 °C (Low Gain)

• Temperature alert

• Supported

• FFC

• Auto/ manual

• Palette

• White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Rangefinder

• Wave length

• 905 nm

• Measurement range

• 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)

• Measurement accuracy

• ± (0.2 m + D×0.15%)
  D is the distance to a vertical surface

Features

• Hybrid Optical Zoom

• 23×（DFOV：4°，EQV：556.2mm）

• Max. Zoom

• 200×（DFOV：0.5°，EQV：4800mm）

• One Click Capture

• One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously

• Point to Aim

• Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest

• High-Res Grid Photo

• Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

• Night Scene

• Supported (zoom camera)

• Timestamp

• Including GPS, date, and time

Storage

• Supported SD Card

• MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)

• Supported File Systems

• FAT32 (≤ 32 GB), exFAT (> 32 GB)

• Recommended Micro SD Cards

• TOSHIBA EXCERIA PRO 32GB micro SD HC II
  SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
  TOSHIBA EXCERIA PRO 64GB micro SD XC II
  SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
  SAMSUNG_EVO_128GB_micro SD 3 XC I
  TOSHIBA EXCERIA M303E 32GB micro SD HC I
  TOSHIBA EXCERIA M303E 64GB micro SD XC I
  TOSHIBA EXCERIA M303E 64GB micro SD XC I
  TOSHIBA EXCERIA M303 128GB micro SD XC I
  SAMSUNG_EVO_64GB_micro SD 3 XC I
